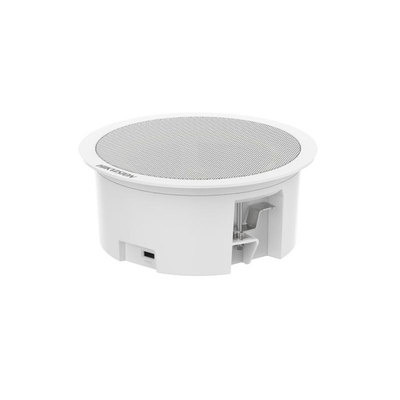

The Hikvision DS-QAZ1206G1-BE is a 6 W network ceiling speaker for IP public address systems. It plays scheduled, live and emergency broadcasts, alarm-linked messages and text-to-speech announcements over a standard network, with a 5″ full-range driver that reaches 100 dB SPL and spreads sound in a 130° conical pattern. One cable carries audio, control and power: the speaker runs on PoE+ (IEEE 802.3at) or 12 VDC. It stores audio files on its built-in 4 GB eMMC, adds Bluetooth 5.0, two alarm inputs and a 3.5 mm audio input, and its 8 Ω output drives 1 × 6 W / 8 Ω secondary speaker to extend coverage without extra network ports. Note: power the speaker from a PoE+ (IEEE 802.3at) switch port or a 12 VDC / 1.5 A adapter. Key Features 6 W full-range 5″ driver: 100 dB max. SPL, 93 dB sensitivity (1 W / 1 m) 300 Hz – 15 kHz frequency response with 130° conical coverage Scheduled, live and emergency broadcast, alarm linkage and text-to-speech Text-to-speech in English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean and French AEC, AGC, ANS and DRC audio algorithms, plus 5-level digital noise reduction Built-in 4 GB eMMC (1 GB for MP3 / WAV audio files) and NTP time sync PoE+ (802.3at) or 12 VDC power, RJ45 10/100 Mbps Ethernet and Bluetooth 5.0 (10 m) 2 alarm inputs, 3.5 mm audio input and 8 Ω output for 1 × 6 W / 8 Ω secondary speaker Open integration: ISAPI, ISUP, SIP, RTP and ONVIF Web interface in 41 languages, including Arabic Works With Secondary speaker: DS-QAZ0206G1-S – 1 × 6 W / 8 Ω secondary speaker on the 8 Ω output Software and clients: Hik-Connect, iVMS-4200, HikCentral Professional, Hik-Partner Pro, Hikvision NVR and Milestone Third-party systems: SIP, ONVIF and RTP Technical Specifications Specification Details Model DS-QAZ1206G1-BE Product Name Network Ceiling Speaker 6W Rated Power 6 W Impedance 8 Ω Speaker Unit Full-range 5″ × 1 Sensitivity (1 m, 1 W) 93 dB Max. Sound Pressure 100 dB SPL Frequency Response 300 Hz – 15 kHz SNR 82 dB Coverage Angle Conical, 130° Audio Algorithms AEC, AGC, ANS, DRC Audio Coding G.711 µ-law / A-law (64 Kbps), MP3 (128 Kbps); MP3 and WAV files Broadcast Scheduled, live and emergency broadcast; NTP timing Local Storage 4 GB eMMC (1 GB for audio files) Network RJ45 10/100 Mbps Ethernet × 1 Bluetooth Bluetooth 5.0, 10 m Protocols / API ISAPI, ISUP, SIP, RTP, ONVIF Interfaces Alarm input × 2; 3.5 mm audio input × 1; 8 Ω audio output (Phoenix terminal) × 1 Secondary Speakers 1 × 6 W / 8 Ω secondary speaker (DS-QAZ0206G1-S) Power PoE+ (IEEE 802.3at) or 12 VDC / 1.5 A Material Plastic body, metal mesh cover Color White Dimensions Ø179 × 73.5 mm (mounting hole Ø160 mm, mounting depth 127 mm) Weight Approx. 0.3 kg (0.5 kg with package) Operating Conditions -10 °C to 50 °C, humidity < 90% (non-condensing) What's in the Box 1 × DS-QAZ1206G1-BE network ceiling speaker 1 × Mesh cover 1 × Regulatory compliance and safety information Why Choose the Hikvision DS-QAZ1206G1-BE? Audio, control and power over a single PoE+ cable – no separate amplifier needed Extends coverage cheaply with 1 × 6 W / 8 Ω secondary speaker Scheduled music, live paging and emergency messages from Hikvision software, including alarm-triggered announcements Integrates with third-party platforms through SIP and ONVIF Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
75.000 JD

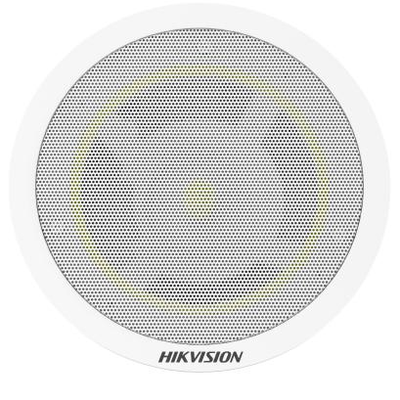

The Hikvision DS-QAZ1203G1-BE is a 3 W network ceiling speaker for IP public address systems. It plays scheduled, live and emergency broadcasts, alarm-linked messages and text-to-speech announcements over a standard network, with a 5″ full-range driver that reaches 97 dB SPL and spreads sound in a 130° conical pattern. One cable carries audio, control and power: the speaker runs on PoE+ (IEEE 802.3at) or 12 VDC. It stores audio files on its built-in 4 GB eMMC, adds Bluetooth 5.0, two alarm inputs and a 3.5 mm audio input, and its 8 Ω output drives up to 3 × 3 W / 8 Ω secondary speakers to extend coverage without extra network ports. Note: power the speaker from a PoE+ (IEEE 802.3at) switch port or a 12 VDC / 1.5 A adapter. Key Features 3 W full-range 5″ driver: 97 dB max. SPL, 93 dB sensitivity (1 W / 1 m) 300 Hz – 15 kHz frequency response with 130° conical coverage Scheduled, live and emergency broadcast, alarm linkage and text-to-speech Text-to-speech in English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean and French AEC, AGC, ANS and DRC audio algorithms, plus 5-level digital noise reduction Built-in 4 GB eMMC (1 GB for MP3 / WAV audio files) and NTP time sync PoE+ (802.3at) or 12 VDC power, RJ45 10/100 Mbps Ethernet and Bluetooth 5.0 (10 m) 2 alarm inputs, 3.5 mm audio input and 8 Ω output for up to 3 × 3 W / 8 Ω secondary speakers Open integration: ISAPI, ISUP, SIP, RTP and ONVIF Web interface in 41 languages, including Arabic Works With Secondary speaker: DS-QAZ0203G1-S – up to 3 × 3 W / 8 Ω secondary speakers on the 8 Ω output Software and clients: Hik-Connect, iVMS-4200, HikCentral Professional, Hik-Partner Pro, Hikvision NVR and Milestone Third-party systems: SIP, ONVIF and RTP Technical Specifications Specification Details Model DS-QAZ1203G1-BE Product Name Network Ceiling Speaker 3W Rated Power 3 W Impedance 8 Ω Speaker Unit Full-range 5″ × 1 Sensitivity (1 m, 1 W) 93 dB Max. Sound Pressure 97 dB SPL Frequency Response 300 Hz – 15 kHz SNR 82 dB Coverage Angle Conical, 130° Audio Algorithms AEC, AGC, ANS, DRC Audio Coding G.711 µ-law / A-law (64 Kbps), MP3 (128 Kbps); MP3 and WAV files Broadcast Scheduled, live and emergency broadcast; NTP timing Local Storage 4 GB eMMC (1 GB for audio files) Network RJ45 10/100 Mbps Ethernet × 1 Bluetooth Bluetooth 5.0, 10 m Protocols / API ISAPI, ISUP, SIP, RTP, ONVIF Interfaces Alarm input × 2; 3.5 mm audio input × 1; 8 Ω audio output (Phoenix terminal) × 1 Secondary Speakers Up to 3 × 3 W / 8 Ω secondary speakers (DS-QAZ0203G1-S) Power PoE+ (IEEE 802.3at) or 12 VDC / 1.5 A Material Plastic body, metal mesh cover Color White Dimensions Ø179 × 73.5 mm (mounting hole Ø160 mm, mounting depth 127 mm) Weight Approx. 0.3 kg (0.5 kg with package) Operating Conditions -10 °C to 50 °C, humidity < 90% (non-condensing) What's in the Box 1 × DS-QAZ1203G1-BE network ceiling speaker 1 × Mesh cover 1 × Regulatory compliance and safety information Why Choose the Hikvision DS-QAZ1203G1-BE? Audio, control and power over a single PoE+ cable – no separate amplifier needed Extends coverage cheaply with up to 3 × 3 W / 8 Ω secondary speakers Scheduled music, live paging and emergency messages from Hikvision software, including alarm-triggered announcements Integrates with third-party platforms through SIP and ONVIF Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
69.000 JD

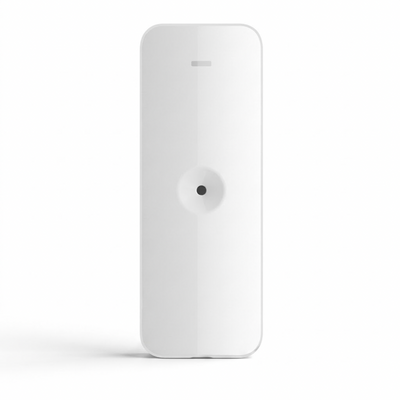

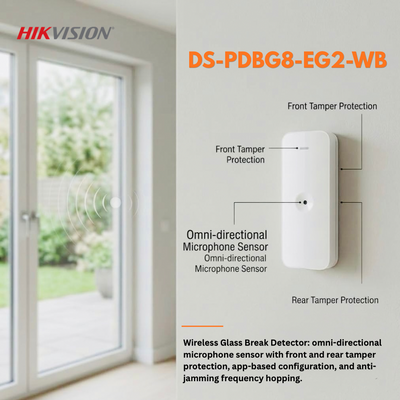

The Hikvision AX PRO DS-PDBG8-EG2-WB is a wireless glass break detector with a high-quality omni-directional microphone sensor. It detects breaking glass up to 8 m away across a 120° angle, with sensitivity selectable at 2, 4, 6 or 8 m, and covers float, plate, tempered, wired, laminated and double-glazed glass from 2.4 to 6.4 mm thick. It communicates over Hikvision Tri-X two-way wireless at 433 MHz with frequency hopping and transmission security, up to 1 km in free space, and is fully configurable remotely through the app. Two CR123A batteries give up to 5 years of standby time, and an extra alarm input (NC / NO / impulse count) lets you connect a wired contact. Note: it needs a 433 MHz Hikvision AX PRO hub, or an AX Hybrid PRO panel with the DS-PM1-RT-HWB 433 MHz Tri-X receiver. It does not work with 868 MHz (-WE) systems. Key Features High-quality omni-directional microphone sensor, 8 m range, 120° detection angle Selectable sensitivity: 2 / 4 / 6 / 8 m Detects float, plate, tempered, wired, laminated and double-glazed glass (2.4–6.4 mm) Tri-X two-way wireless at 433 MHz, up to 1 km in free space Frequency hopping against jamming and secure transmission Fully remote configurable through the app Multiple enrolment methods: power-up, remote ID or QR code Up to 5 years standby battery life (2 × CR123A), easy battery replacement Front and rear tamper protection Environment temperature and signal strength indicators Works With AX PRO 433 MHz hubs: DS-PWA96-KIT-WB and DS-PWA64-KIT-WB alarm kits AX Hybrid PRO panels: DS-PHA48-EP(B) and DS-PHA64-LP(B) through the DS-PM1-RT-HWB 433 MHz Tri-X receiver Range extension: DS-PR1-WB 433 MHz wireless repeater Technical Specifications Specification Details Model DS-PDBG8-EG2-WB Detection Method Acoustic sensor (omni-directional microphone) Detection Range 8 m Detection Angle 120° Sensitivity 2 m / 4 m / 6 m / 8 m Glass Type Float, plate, tempered, wired, laminated, double glazing Glass Thickness 2.4–6.4 mm Glass Size 0.3 × 0.3 m to 3 × 3 m Alarm Input NC / NO / impulse count Tamper Protection Front and rear LED Indicator Blue (alarm) Wireless Technology Tri-X, two-way RF wireless Frequency 433 MHz Wireless Range (free space) 1 km Frequency Hopping / Transmission Security Supported Enrolment Method Power-up, remote ID, QR code Battery 2 × CR123A (3 V) Battery Life Up to 5 years (standby) Mounting Method Wall / ceiling Application Indoor Operating Temperature -10 °C to 55 °C Operating Humidity 10% to 90% Dimensions (W × H × D) 38.8 × 107.0 × 24.5 mm Weight 83 g Why Choose the Hikvision DS-PDBG8-EG2-WB? Raises the alarm when glass is broken, before an intruder gets inside One detector covers the glass within an 8 m, 120° area Reliable 433 MHz Tri-X wireless with frequency hopping and long battery life Quick installation and full remote configuration through the app Downloads ⬇ Download Datasheet (PDF)⬇ Download Quick Start Guide (PDF) Warranty: 12-month warranty from the Official Distributor.
33.000 JD

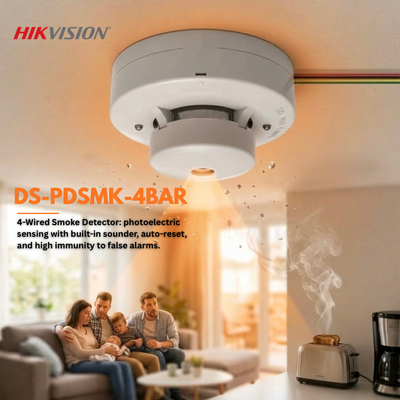

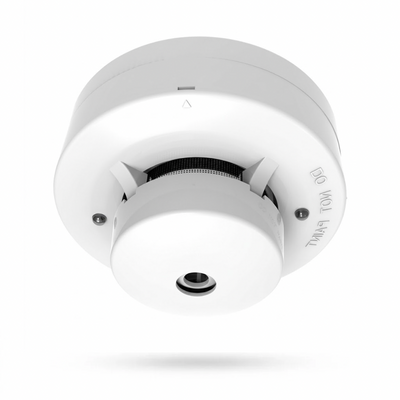

The Hikvision DS-PDSMK-4BAR is a 4-wire photoelectric smoke detector with a built-in sounder (≥ 85 dB at 3 m), so it raises a local audible alarm while signalling the alarm panel. Its stable photoelectric smoke sensing chamber and advanced algorithms provide reliable detection with high immunity against unwanted alarms. It runs on 12 VDC (10.2–13.8 VDC) and connects to the panel through an N/C or N/O alarm relay output. Two continuously emitting red LEDs give 360° visibility, the chamber needs no adjustment or replacement, and the sleek low-profile Ø100 × 35 mm housing mounts on the ceiling. Note: this is a 4-wire detector: it needs a 12 VDC supply and a wired zone input of an alarm panel (see "Works With" below). Key Features Built-in sounder: ≥ 85 dB at 3 m Stable photoelectric smoke sensing chamber – no adjustment or replacement required Advanced algorithms for detection discrimination High immunity against unwanted alarms 4-wire model for DC 12 V operation N/C or N/O alarm relay output Dual red LEDs for 360° visibility Sleek low-profile Ø100 × 35 mm ceiling housing Surface-mount device (SMD) circuit board design IP42 rating, 0 °C to +50 °C operation Works With Wired alarm panels: the relay output connects to a wired zone input and the detector takes 12 VDC, e.g. from the auxiliary output of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDSMK-4BAR Detection Type Photoelectric smoke sensing chamber Alarm Threshold 0.10–0.16 dB/m (1.51–2.73 %/ft obscuration) Wiring 4-wire Built-in Sounder ≥ 85 dB @ 3 m Alarm Output N/C or N/O alarm relay Power Supply 10.2–13.8 VDC (12 VDC) Indicator Two continuously emitting red LEDs (360° visibility) IP Rating IP42 Installation Ceiling mounted Operating Temperature 0 °C to +50 °C Operating Humidity 0% to 98% RH, non-condensing Storage Temperature -25 °C to +80 °C Dimensions Ø100 × 35 mm Why Choose the Hikvision DS-PDSMK-4BAR? Local ≥ 85 dB sounder warns people on site immediately Reliable photoelectric sensing with high immunity to nuisance alarms Integrates with wired alarm panels through its relay output Maintenance-friendly chamber and discreet low-profile design Warranty: 12-month warranty from the Official Distributor.
35.000 JD

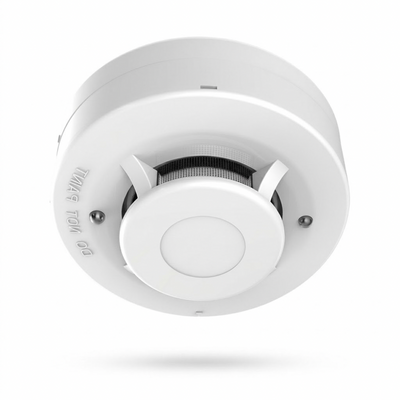

The Hikvision DS-PDSMK-4 is a 4-wire photoelectric smoke detector for wired alarm systems. Its stable photoelectric smoke sensing chamber and advanced algorithms provide reliable detection with high immunity against unwanted alarms, and the chamber needs no adjustment or replacement. It runs on 12 VDC (10.2–13.8 VDC) and signals the alarm panel through an N/C or N/O alarm relay output. Two continuously emitting red LEDs give 360° visibility, and the sleek low-profile Ø100 × 35 mm housing mounts on the ceiling. Note: this is a 4-wire detector: it needs a 12 VDC supply and a wired zone input of an alarm panel (see "Works With" below). Key Features Stable photoelectric smoke sensing chamber – no adjustment or replacement required Advanced algorithms for detection discrimination High immunity against unwanted alarms 4-wire model for DC 12 V operation N/C or N/O alarm relay output Dual red LEDs for 360° visibility Sleek low-profile Ø100 × 35 mm ceiling housing Surface-mount device (SMD) circuit board design IP42 rating, 0 °C to +50 °C operation Works With Wired alarm panels: the relay output connects to a wired zone input and the detector takes 12 VDC, e.g. from the auxiliary output of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDSMK-4 Detection Type Photoelectric smoke sensing chamber Alarm Threshold 0.10–0.16 dB/m (1.51–2.73 %/ft obscuration) Wiring 4-wire Alarm Output N/C or N/O alarm relay Power Supply 10.2–13.8 VDC (12 VDC) Indicator Two continuously emitting red LEDs (360° visibility) IP Rating IP42 Installation Ceiling mounted Operating Temperature 0 °C to +50 °C Operating Humidity 0% to 98% RH, non-condensing Storage Temperature -25 °C to +80 °C Dimensions Ø100 × 35 mm Why Choose the Hikvision DS-PDSMK-4? Reliable photoelectric sensing with high immunity to nuisance alarms Integrates with wired alarm panels through its relay output Maintenance-friendly chamber with no adjustment needed Discreet low-profile ceiling design Warranty: 12-month warranty from the Official Distributor.
20.000 JD

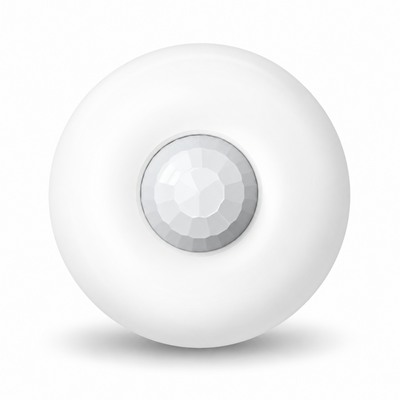

The Hikvision DS-PDCL12-EG2 is a wired 360° PIR ceiling detector with a digital quad pyro sensor. Mounted on the ceiling at 2.4–4 m, it covers a range of up to 12 m in all directions with 172 detection zones, so one detector can protect an open indoor area. Automatic sensitivity, digital temperature compensation, creep zone protection, sealed optics and a 6500 lux white light filter help prevent false alarms. It runs on 9–16 VDC (12 VDC typical) with low current draw, provides a normally closed (NC) alarm output and has an on-board EOL resistor for simple wiring to a wired alarm panel. Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below). Key Features Digital quad pyro sensor 360° detection with up to 12 m range and 172 detection zones Automatic sensitivity (Auto / Low) Digital temperature compensation and creep zone protection Sealed optics and 6500 lux white light filter Wide 9–16 VDC voltage adaptation and on-board EOL resistor Normally closed (NC) alarm output, front tamper protection and blue alarm LED Low current: 13 mA max., 7 mA quiescent at 12 VDC Low-profile Ø101.2 × 32.9 mm ceiling housing Works With Wired alarm panels: connects to a wired zone input, e.g. the on-board zones of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDCL12-EG2 Detection Method Passive Infrared (PIR), digital quad pyro sensor Detection Range 12 m Detection Angle 360° Detection Zones 172 Detectable Speed 0.3–2 m/s Sensitivity Low / Auto White Light Filter 6500 lux Digital Temperature Compensation Supported Creep Zone Protection Supported Sealed Optics Supported Tamper Protection Front Alarm Output Normally Closed (NC) LED Indicator Blue (alarm) Power Supply 9–16 VDC (12 VDC typical) Current Consumption 13 mA max., 7 mA quiescent @ 12 VDC Mounting Height 2.4–4 m Mounting Method Ceiling Application Indoor Operating Temperature -10 °C to 55 °C Operating Humidity 10% to 90% Dimensions Ø101.2 × 32.9 mm Weight 79 g Why Choose the Hikvision DS-PDCL12-EG2? 360° ceiling coverage protects a whole open area from a single point Quad pyro sensor with digital processing for accurate detection On-board EOL resistor and wide voltage input simplify installation Discreet, low-profile ceiling design Warranty: 12-month warranty from the Official Distributor.
25.000 JD

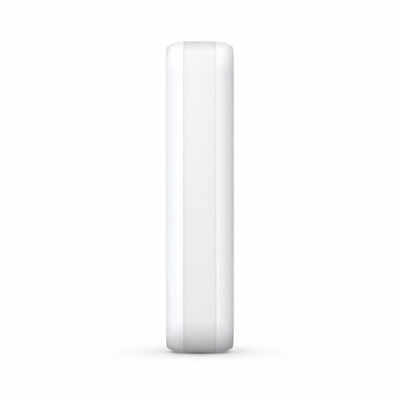

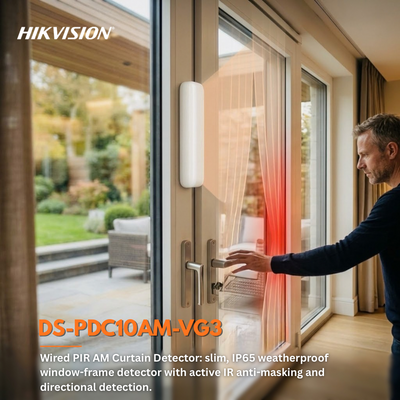

The Hikvision DS-PDC10AM-VG3 is a wired PIR curtain detector with active IR anti-masking and an IP65 weather-resistant housing for indoor and outdoor use. It detects up to 10 m when wall-mounted (6 m when ceiling-mounted) with a narrow 5° curtain and 32 detection zones, and its slim design suits installation on window frames. Automatic sensitivity, directional detection, digital temperature compensation, creep zone protection, sealed optics and a 6500 lux white light filter keep detection reliable. It works on 9–16 VDC, provides a normally closed (NC) alarm output with selectable EOL resistors and front and rear tamper protection, and comes with an L-shaped adapter for wall or ceiling mounting at 2–4 m. Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below). Key Features Slim design for window frame installation IP65 weather resistance for outdoor application Active IR anti-masking with green and orange masking LEDs Detection range: 10 m wall-mounted, 6 m ceiling-mounted; 5° angle, 32 zones Automatic sensitivity and directional detection support Digital temperature compensation, creep zone protection and sealed optics Selectable EOL resistors for alarm and tamper-proof wiring Front and rear tamper protection Wide operating temperature: -25 °C to 60 °C L-shaped adapter included for wall or ceiling mounting Works With Wired alarm panels: connects to a wired zone input, e.g. the on-board zones of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDC10AM-VG3 Detection Method Passive Infrared (PIR) Detection Range Wall mount: 10 m; ceiling mount: 6 m Detection Angle 5° Detection Zones 32 Detectable Speed 0.2–3 m/s Sensitivity Auto Anti-Masking Supported (active IR) White Light Filter 6500 lux Digital Temperature Compensation Supported Creep Zone Protection / Sealed Optics Supported Directional Detection Supported Tamper Protection Front and rear Alarm Output Normally Closed (NC) LED Indicator Blue (alarm), green + orange (mask) Power Supply 9–16 VDC (12 VDC typical) Current Consumption 22 mA max., 9 mA quiescent @ 12 VDC Ingress Protection IP65 Mounting Height 2–4 m Mounting Method Wall / ceiling (L-shaped adapter included) Application Indoor and outdoor Operating Temperature -25 °C to 60 °C Operating Humidity 10% to 90% Dimensions (W × H × D) 29.2 × 134.4 × 39.5 mm Weight 77.5 g Why Choose the Hikvision DS-PDC10AM-VG3? Anti-masking reports attempts to cover or block the detector IP65 housing allows outdoor installation as well as indoor use Slim profile fits window frames and narrow openings Selectable EOL resistors and front and rear tamper protection for professional wired installations Warranty: 12-month warranty from the Official Distributor.
39.000 JD

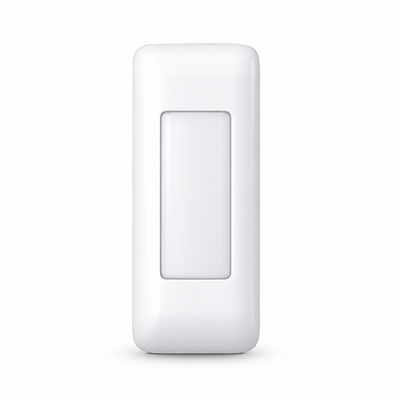

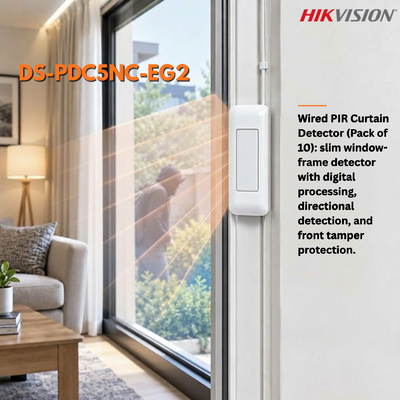

The Hikvision DS-PDC5NC-EG2 is a slim wired PIR curtain detector designed for installation on window frames. It covers up to 5 m with a narrow 5° curtain and 28 detection zones, and supports directional detection and automatic sensitivity. Digital processing with digital temperature compensation, creep zone protection and a 6500 lux white light filter helps prevent false alarms. It runs on 9–16 VDC (12 VDC typical), gives a normally closed (NC) alarm output with front tamper protection, and its compact 29.7 × 78.1 × 24.8 mm body mounts at a height of 2.4–4 m. Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below). Key Features Slim design for window frame installation 5 m detection range with a narrow 5° curtain angle 28 detection zones, detectable speed 0.3–2 m/s Automatic sensitivity Directional detection support Digital processing with digital temperature compensation and creep zone protection 6500 lux white light filter Normally closed (NC) alarm output and front tamper protection 9–16 VDC power input, 15 mA max. at 12 VDC Works With Wired alarm panels: connects to a wired zone input, e.g. the on-board zones of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDC5NC-EG2 Detection Method Passive Infrared (PIR) Detection Range 5 m Detection Angle 5° Detection Zones 28 Detectable Speed 0.3–2 m/s Sensitivity Auto White Light Filter 6500 lux Digital Temperature Compensation Supported Creep Zone Protection Supported Directional Detection Supported Tamper Protection Front Alarm Output Normally Closed (NC) LED Indicator Blue (alarm) Transmission Wired Power Supply 9–16 VDC (12 VDC typical) Current Consumption 15 mA max., 15 mA quiescent @ 12 VDC Mounting Height 2.4–4 m Mounting Method Ceiling Application Indoor Operating Temperature -10 °C to 55 °C Operating Humidity 10% to 90% Dimensions (W × H × D) 29.7 × 78.1 × 24.8 mm Weight 31.5 g Why Choose the Hikvision DS-PDC5NC-EG2? Slim body fits neatly on window frames Narrow 5° curtain protects the opening without covering the whole room Automatic sensitivity and directional detection Standard 12 VDC wiring with an NC output for wired alarm panels Downloads ⬇ Download Quick Start Guide (PDF) Warranty: 12-month warranty from the Official Distributor.
60.000 JD

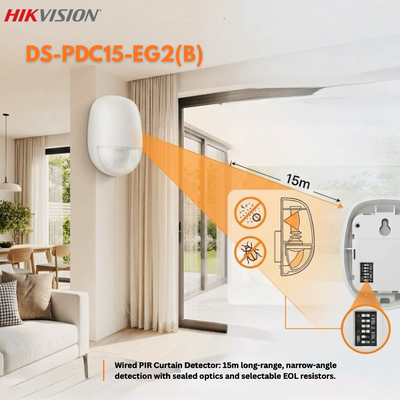

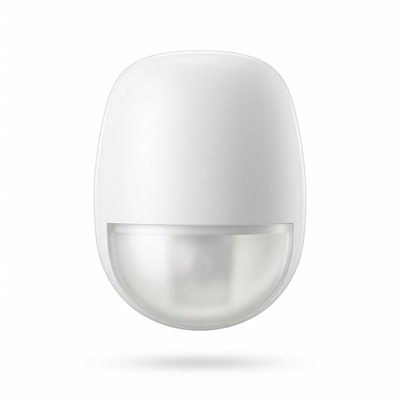

The Hikvision DS-PDC15-EG2(B) is a wired PIR curtain detector that covers up to 15 m with a narrow 6.3° detection angle and 18 detection zones. Its long, narrow coverage forms a detection curtain, so it can protect a corridor, a row of windows or a long wall without covering the whole room. Digital processing with digital temperature compensation, creep zone protection, sealed optics that keep insects out and a 6500 lux white light filter help prevent false alarms. It works on 9–16 VDC (12 VDC typical) with polarity reverse connection protection, provides a normally closed (NC) alarm output with selectable EOL resistors, and mounts on a wall or ceiling at 2.4–3.6 m. Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below). Key Features Up to 15 m detection range with a narrow 6.3° curtain angle 18 detection zones, detectable speed 0.3–2 m/s Digital processing with digital temperature compensation Creep zone protection and sealed optics that prevent insect interference 6500 lux white light filter against false alarms Normally closed (NC) alarm output with selectable EOL resistors for alarm and tamper wiring Front tamper protection and blue alarm LED 9–16 VDC wide voltage input with polarity reverse connection protection Wall or ceiling mounting at 2.4–3.6 m (wall and ceiling brackets sold separately) Global certifications available: EN Grade 2, CE, CB, IC, RCM Works With Wired alarm panels: connects to a wired zone input, e.g. the on-board zones of the AX Hybrid PRO DS-PHA48-EP(B) and DS-PHA64-LP(B) panels or the DS-PHA64-KIT-WB(B) kit Zone expansion: DS-PM1-I8O2-H 8-zone wired input expander for AX Hybrid PRO panels Technical Specifications Specification Details Model DS-PDC15-EG2(B) Detection Method Passive Infrared (PIR) Detection Range 15 m Detection Angle 6.3° Detection Zones 18 Detectable Speed 0.3–2 m/s White Light Filter 6500 lux Digital Temperature Compensation Supported Creep Zone Protection Supported Sealed Optics Supported Tamper Protection Front Alarm Output Normally Closed (NC) LED Indicator Blue (alarm) Transmission Wired Power Supply 9–16 VDC (12 VDC typical) Current Consumption 11 mA max. Mounting Height 2.4–3.6 m Mounting Method Wall / ceiling (brackets optional) Application Indoor Operating Temperature -10 °C to 55 °C Operating Humidity 10% to 90% Dimensions (W × H × D) 65.4 × 86.8 × 45.5 mm Weight 68 g Why Choose the Hikvision DS-PDC15-EG2(B)? Long, narrow coverage protects corridors, window rows and long walls without covering the whole room Digital temperature compensation and sealed optics keep detection reliable and false alarms low Wide 9–16 VDC input with reverse polarity protection makes wiring forgiving Selectable EOL resistors fit standard alarm panel zone wiring Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
20.000 JD

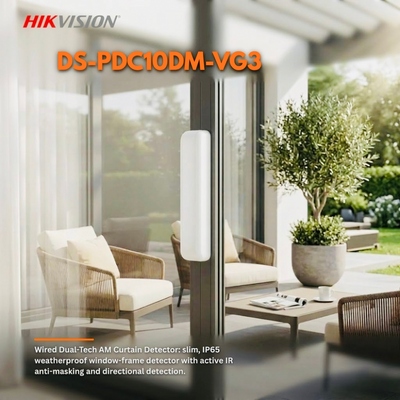

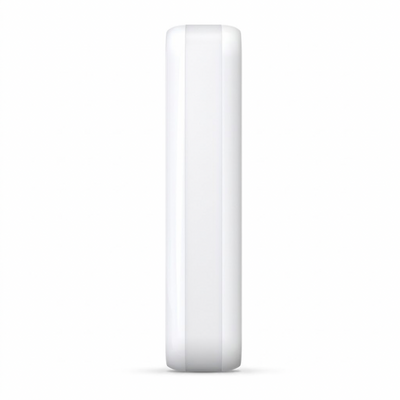

The Hikvision DS-PDC10DM-VG3 is a wired dual-technology curtain detector with anti-masking. It combines PIR and 24 GHz microwave in a slim body with a narrow 5° curtain, covering up to 10 m when wall mounted or 6 m when ceiling mounted with 32 detection zones. Active IR anti-masking, directional detection and automatic sensitivity help separate real intrusions from false triggers, and selectable EOL resistors simplify alarm and tamper wiring to a wired zone. The IP65 housing allows outdoor use, and the slim design fits window frames. Key Features Dual technology: PIR + 24 GHz microwave Narrow 5° curtain, 32 detection zones Range up to 10 m wall mounted, 6 m ceiling mounted Active IR anti-masking Directional detection support Automatic sensitivity Digital temperature compensation, creep-zone protection, sealed optics and 6500 lux white-light filter Selectable EOL resistors for alarm and tamper wiring; normally closed alarm output Front and rear tamper protection IP65 weather resistance for outdoor use; slim design for window-frame installation Works With Wired alarm zones of Hikvision AX Hybrid PRO panels DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit Extra wired zones: the DS-PM1-I8O2-H 8-zone input expander Technical Specifications Specification Details Model DS-PDC10DM-VG3 Product Name Wired Dual-Tech AM Curtain Detector Detection Method PIR + microwave Detection Range Wall mount: 10 m; ceiling mount: 6 m Detection Angle 5° Detection Zones 32 Detectable Speed 0.2–3 m/s Sensitivity Auto Microwave Frequency 24 GHz (24.15–24.25 GHz) White Light Filter 6500 lux Anti-Masking Active IR Directional Detection Supported Tamper Protection Front and rear Alarm Output Normally closed (wired) LED Indicator Green (PIR), red (microwave), green + orange (mask), blue (alarm) Power Supply 9–16 VDC (typical 12 VDC) Power Consumption Max. 25 mA @ 12 VDC; quiescent 16 mA @ 12 VDC Ingress Protection IP65 Operating Temperature -25°C to 60°C Operating Humidity 10% to 90% Mounting Wall or ceiling, 2–4 m height Application Indoor and outdoor Dimensions (W × H × D) 29.2 × 134.4 × 39.5 mm Weight 79 g What's in the Box 1 × DS-PDC10DM-VG3 curtain detector 1 × L-shaped adapter Why Choose the Hikvision DS-PDC10DM-VG3? Protects windows, doors and narrow openings with a tight 5° curtain PIR plus microwave with anti-masking for reliable detection IP65 rating for outdoor and semi-outdoor spots Low 25 mA draw on the alarm panel Downloads ⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
40.000 JD

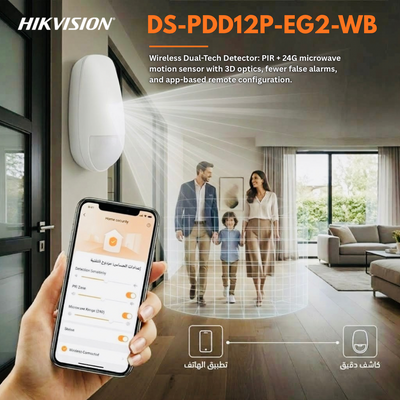

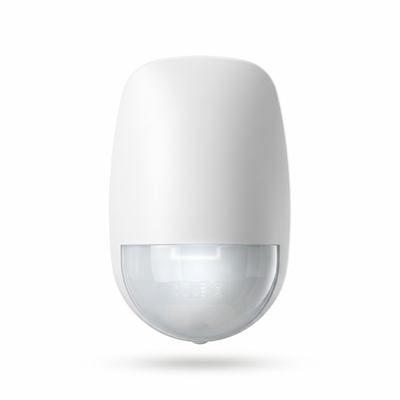

The Hikvision DS-PDD12P-EG2-WE is an AX PRO wireless dual-technology detector that combines PIR and 24 GHz microwave detection. It covers 12 m with an 85.9° angle and 52 detection zones, offers pet immunity up to 30 kg, and its 24G microwave is designed to prevent wall penetration. It uses Hikvision Tri-X two-way wireless at 868 MHz with AES-128 encryption and frequency hopping against jamming, reaching up to 1.6 km in free space. Two CR123A batteries give up to 5 years of standby, and the detector is fully remote-configurable through the app. Note: this is the 868 MHz (-WE) version. It does not pair with the 433 MHz (-WB) AX PRO kits sold here (DS-PWA96-KIT-WB, DS-PWA64-KIT-WB); for those, choose the DS-PDD12P-EG2-WB. On AX Hybrid PRO panels it needs the 868 MHz DS-PM1-RT-HWE receiver. Key Features Dual technology: PIR + 24 GHz microwave 12 m detection range, 85.9° angle, 52 detection zones Pet immunity up to 30 kg; sensitivity High / Auto / Pet 3D optics with creep-zone protection for full coverage without dead angle 24G microwave designed to prevent wall penetration Digital temperature compensation, 6500 lux white-light filter and sealed optics Front and rear tamper protection Tri-X two-way wireless at 868 MHz, AES-128 encryption, frequency hopping, up to 1.6 km in free space Enrolment by power-up, remote ID or QR code; fully remote-configurable through the app Up to 5 years battery life (2 × CR123A), easily replaceable battery Works With Hikvision AX PRO 868 MHz (-WE) control panels Hikvision AX Hybrid PRO panels DS-PHA48-EP(B) and DS-PHA64-LP(B) through the DS-PM1-RT-HWE 868 MHz receiver (official compatibility list) Technical Specifications Specification Details Model DS-PDD12P-EG2-WE Product Name Wireless Dual-Tech Detector Detection Method PIR + microwave Detection Range 12 m Detection Angle 85.9° Detection Zones 52 Detectable Speed 0.3–2 m/s Sensitivity High / Auto / Pet Pet Immunity 30 kg Microwave Frequency 24 GHz (24.15–24.25 GHz) White Light Filter 6500 lux Tamper Protection Front and rear LED Indicator Green (PIR), red (microwave), blue (alarm) Transmission Tri-X two-way RF wireless Transmission Frequency 868 MHz Transmission Security AES-128 encryption, frequency hopping Transmission Range Up to 1.6 km (free space) Enrolling Method Power-up, remote ID, QR code Battery 2 × CR123A (typical 3 V), up to 5 years standby Operating Temperature -10°C to 55°C Operating Humidity 10% to 90% Mounting Wall, 1.8–2.4 m (optional wall and ceiling bracket) Application Indoor Dimensions (W × H × D) 65.5 × 103 × 48.5 mm Weight 141 g Why Choose the Hikvision DS-PDD12P-EG2-WE? PIR plus microwave confirmation helps cut false alarms Pet-friendly up to 30 kg Encrypted, frequency-hopping 868 MHz link with long range Up to 5 years on two CR123A batteries Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
39.000 JD

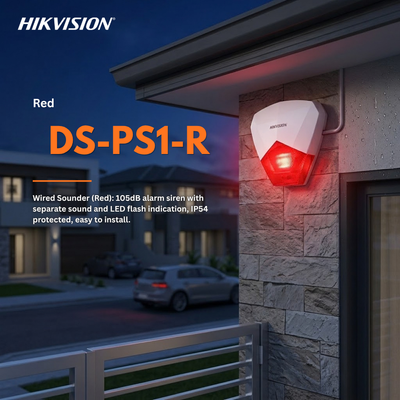

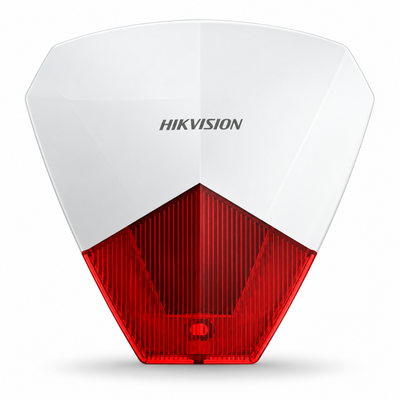

The Hikvision DS-PS1-R is a red wired sounder for wired intrusion alarm panels. It delivers 105 dB at 30 cm and adds an LED flash, and the sound and LED flash indications work separately. It runs on 8–16 VDC (typical 12 VDC) from the panel's sounder output with a maximum draw of only 70 mA. The IP54 PC + ABS housing works from -20°C to +60°C, and the newly designed structure makes installation easy. Key Features Sound pressure of 105 dB at 30 cm LED flash indication Sound and LED flash indication separately IP54 protection 8–16 VDC power input Low current draw: max. 70 mA, quiescent 45 mA @ 12 VDC Operating temperature -20°C to +60°C Easy installation with a newly designed structure Works With Wired alarm control panels with a wired sounder (BELL) output, such as the Hikvision AX Hybrid PRO DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit (on-board wired sounder output) Technical Specifications Specification Details Model DS-PS1-R Product Name Wired Sounder Sound Pressure 105 dB at 30 cm Visual Indication LED flash (sound and flash separately) Power Supply 8–16 VDC (typical 12 VDC) Power Consumption Max. 70 mA @ 12 VDC; quiescent 45 mA @ 12 VDC Ingress Protection IP54 Operating Temperature -20°C to +60°C Operating Humidity 10% to 90% Housing Material PC + ABS Colour Red (also available in blue: DS-PS1-B) Dimensions (W × H × D) 140 × 134 × 33 mm Weight 185 g Why Choose the Hikvision DS-PS1-R? Audible and visual alarm in one compact unit IP54 housing and a wide -20°C to +60°C operating range Very low current draw on the panel output Available in blue and red to match the installation Downloads ⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
25.000 JD

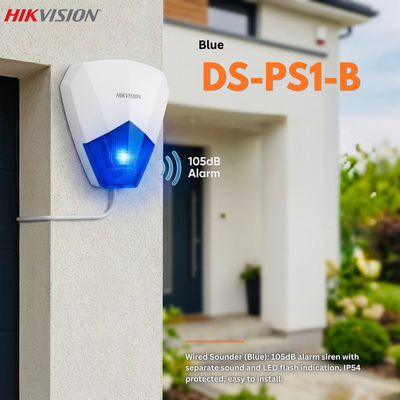

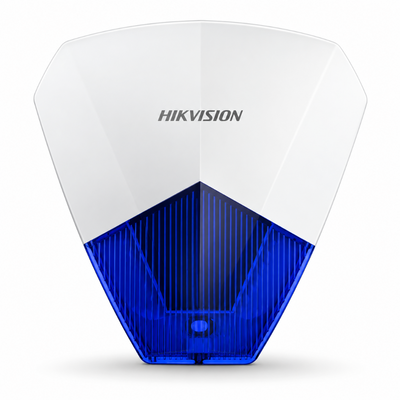

The Hikvision DS-PS1-B is a blue wired sounder for wired intrusion alarm panels. It delivers 105 dB at 30 cm and adds an LED flash, and the sound and LED flash indications work separately. It runs on 8–16 VDC (typical 12 VDC) from the panel's sounder output with a maximum draw of only 70 mA. The IP54 PC + ABS housing works from -20°C to +60°C, and the newly designed structure makes installation easy. Key Features Sound pressure of 105 dB at 30 cm LED flash indication Sound and LED flash indication separately IP54 protection 8–16 VDC power input Low current draw: max. 70 mA, quiescent 45 mA @ 12 VDC Operating temperature -20°C to +60°C Easy installation with a newly designed structure Works With Wired alarm control panels with a wired sounder (BELL) output, such as the Hikvision AX Hybrid PRO DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit (on-board wired sounder output) Technical Specifications Specification Details Model DS-PS1-B Product Name Wired Sounder Sound Pressure 105 dB at 30 cm Visual Indication LED flash (sound and flash separately) Power Supply 8–16 VDC (typical 12 VDC) Power Consumption Max. 70 mA @ 12 VDC; quiescent 45 mA @ 12 VDC Ingress Protection IP54 Operating Temperature -20°C to +60°C Operating Humidity 10% to 90% Housing Material PC + ABS Colour Blue (also available in red: DS-PS1-R) Dimensions (W × H × D) 140 × 134 × 33 mm Weight 185 g Why Choose the Hikvision DS-PS1-B? Audible and visual alarm in one compact unit IP54 housing and a wide -20°C to +60°C operating range Very low current draw on the panel output Available in blue and red to match the installation Downloads ⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
25.000 JD

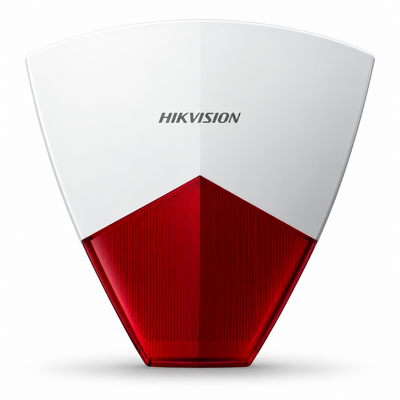

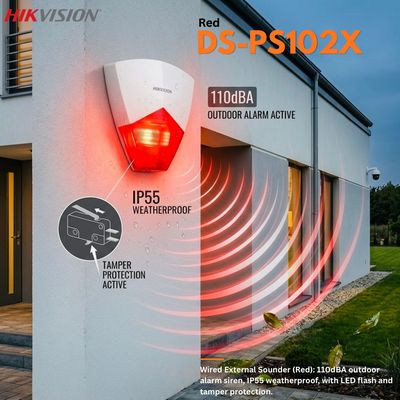

The Hikvision DS-PS102X/RED is the red version of the Hikvision DS-PS102X wired external sounder. It combines a siren of up to 110 dB at 1 m (106 dBA average) with a red LED strobe, and the sound and LED flash indications can be used separately. It is controlled by the PGM/BELL port of a wired alarm panel, supports positive or negative triggering and offers three alarm sounds: fire, panic and intrusion. Front-cover and wall tamper switches, tamper and cut-wire alarms and an IP55 housing protect it on exterior walls. Key Features Sound pressure up to 110 dBA at 1 m (106 dBA average) Red LED strobe light Sound and LED flash indication separately 3 alarm sounds: fire, panic and intrusion Controlled by the PGM/BELL port of the alarm panel Positive or negative triggering Tamper alarm and cut-wire alarm Front cover and wall tamper protection IP55 protection 9–16 VDC power input, max. 180 mA @ 12 VDC Works With Wired alarm control panels with a PGM/BELL output, such as the Hikvision AX Hybrid PRO DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit (on-board wired sounder output) Technical Specifications Specification Details Model DS-PS102X (DS-PS102X/RED) Product Name Wired External Sounder Colour Red (also available in blue: DS-PS102X/BLUE) Sound Pressure 110 dBA max. / 106 dBA average at 1 m Alarm Sounds Fire, panic, intrusion Control PGM/BELL port Trigger Positive / negative Tamper Protection Front cover and wall; tamper and cut-wire alarm Power Supply 9–16 VDC (typical 12 VDC) Power Consumption Max. 180 mA @ 12 VDC Ingress Protection IP55 Operating Temperature -20°C to +60°C Operating Humidity 10% to 90% Housing Material PC + ABS Dimensions (W × H × D) 221 × 215 × 51 mm Weight 475 g Why Choose the Hikvision DS-PS102X/RED? Loud 110 dB siren plus a red strobe, so an alarm is both heard and seen Separate tones for fire, panic and intrusion events Tamper and cut-wire alarms help detect sabotage IP55 housing for exterior walls Warranty: 12-month warranty from the Official Distributor.
35.000 JD

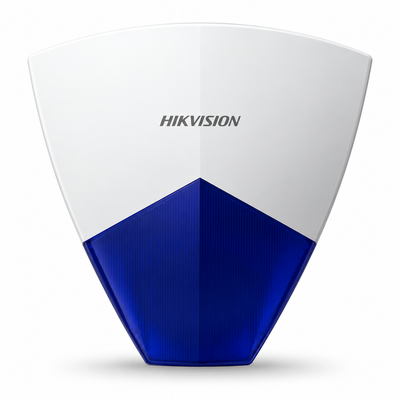

The Hikvision DS-PS102X/BLUE is the blue version of the Hikvision DS-PS102X wired external sounder. It combines a siren of up to 110 dB at 1 m (106 dBA average) with a blue LED strobe, and the sound and LED flash indications can be used separately. It is controlled by the PGM/BELL port of a wired alarm panel, supports positive or negative triggering and offers three alarm sounds: fire, panic and intrusion. Front-cover and wall tamper switches, tamper and cut-wire alarms and an IP55 housing protect it on exterior walls. Key Features Sound pressure up to 110 dBA at 1 m (106 dBA average) Blue LED strobe light Sound and LED flash indication separately 3 alarm sounds: fire, panic and intrusion Controlled by the PGM/BELL port of the alarm panel Positive or negative triggering Tamper alarm and cut-wire alarm Front cover and wall tamper protection IP55 protection 9–16 VDC power input, max. 180 mA @ 12 VDC Works With Wired alarm control panels with a PGM/BELL output, such as the Hikvision AX Hybrid PRO DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit (on-board wired sounder output) Technical Specifications Specification Details Model DS-PS102X (DS-PS102X/BLUE) Product Name Wired External Sounder Colour Blue (also available in red: DS-PS102X/RED) Sound Pressure 110 dBA max. / 106 dBA average at 1 m Alarm Sounds Fire, panic, intrusion Control PGM/BELL port Trigger Positive / negative Tamper Protection Front cover and wall; tamper and cut-wire alarm Power Supply 9–16 VDC (typical 12 VDC) Power Consumption Max. 180 mA @ 12 VDC Ingress Protection IP55 Operating Temperature -20°C to +60°C Operating Humidity 10% to 90% Housing Material PC + ABS Dimensions (W × H × D) 221 × 215 × 51 mm Weight 475 g Why Choose the Hikvision DS-PS102X/BLUE? Loud 110 dB siren plus a blue strobe, so an alarm is both heard and seen Separate tones for fire, panic and intrusion events Tamper and cut-wire alarms help detect sabotage IP55 housing for exterior walls Warranty: 12-month warranty from the Official Distributor.
35.000 JD
The Hikvision DS-PM1-RT-HWE is an 868 MHz Tri-X wireless receiver for the Hikvision AX Hybrid PRO alarm system. It connects to the control panel over the Speed-X bus and adds wireless devices to the wired system: up to 32 wireless detectors, 8 wireless indoor sounders and 4 wireless outdoor sounders. The wireless transmission distance reaches up to 1,700 m in open space, and the link is protected by frequency hopping and 128-bit AES encryption. Green and orange LEDs show power/find-me and alarm/fault status. Note: this is the 868 MHz version. It works only with 868 MHz (-WE) Tri-X devices; for 433 MHz devices choose the DS-PM1-RT-HWB. Key Features 868 MHz Tri-X wireless receiver for AX Hybrid PRO Up to 32 wireless detectors (portable emergency button not included) Up to 8 wireless indoor sounders and 4 wireless outdoor sounders Wireless transmission distance up to 1,700 m in open space Frequency hopping and 128-bit AES encryption 1 Speed-X bus connection to the control panel LED indicators: green for power/find me, orange for alarm/fault 9–24 VDC power input Works With Hikvision AX Hybrid PRO control panels: DS-PHA48-EP(B) (48 zones) and DS-PHA64-LP(B) (64 zones), over the Speed-X bus 868 MHz Tri-X devices from the official compatibility list: DS-PDD12P-EG2-WE, DS-PDMC-EG2-WE(B) Technical Specifications Specification Details Model DS-PM1-RT-HWE Product Name Tri-X Wireless Receiver Compatible System Hikvision AX Hybrid PRO RF Frequency 868 MHz Wireless Technology Tri-X Transmission Distance Up to 1,700 m (open space) Wireless Security Frequency hopping, 128-bit AES encryption Wireless Detectors Up to 32 (portable emergency button not included) Wireless Sounders Up to 8 indoor and 4 outdoor Bus 1 × Speed-X LED Indicators Green: power/find me; orange: alarm/fault Power Supply 9–24 VDC (typical 12 VDC) Power Consumption Max. 100 mA @ 12 VDC; quiescent 40 mA @ 12 VDC Operating Temperature -10°C to 40°C Operating Humidity 10% to 90% Housing Material Plastic Dimensions (W × H × D) 110 × 155 × 32 mm Weight 225 g Why Choose the Hikvision DS-PM1-RT-HWE? Adds wireless detectors and sounders to a wired AX Hybrid PRO system without running new cables Long 1,700 m open-space range with encrypted, frequency-hopping links Up to 32 wireless detectors per receiver Simple Speed-X bus connection to the panel Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
45.000 JD
The Hikvision DS-PM1-RT-HWB is a 433 MHz Tri-X wireless receiver for the Hikvision AX Hybrid PRO alarm system. It connects to the control panel over the Speed-X bus and adds wireless devices to the wired system: up to 32 wireless detectors, 8 wireless indoor sounders and 4 wireless outdoor sounders. The wireless transmission distance reaches up to 1,300 m in open space, and the link is protected by frequency hopping and 128-bit AES encryption. Green and orange LEDs show power/find-me and alarm/fault status. Note: this is the 433 MHz version. It works only with 433 MHz (-WB) Tri-X devices; for 868 MHz devices choose the DS-PM1-RT-HWE. Key Features 433 MHz Tri-X wireless receiver for AX Hybrid PRO Up to 32 wireless detectors (portable emergency button not included) Up to 8 wireless indoor sounders and 4 wireless outdoor sounders Wireless transmission distance up to 1,300 m in open space Frequency hopping and 128-bit AES encryption 1 Speed-X bus connection to the control panel LED indicators: green for power/find me, orange for alarm/fault 9–24 VDC power input Works With Hikvision AX Hybrid PRO control panels: DS-PHA48-EP(B) (48 zones), DS-PHA64-LP(B) (64 zones) and the DS-PHA64-KIT-WB(B) kit, over the Speed-X bus 433 MHz Tri-X devices from the official compatibility list: DS-PDP15P-EG2-WB, DS-PDD12P-EG2-WB, DS-PDCL12-EG2-WB, DS-PDC10AM-EG2-WB, DS-PDPG12P-EG2-WB, DS-PDMCK-EG2-WB(B), DS-PDWL-E-WB, DS-PDTPH-E-WB, DS-PDEB1-EG2-WB, DS-PDEBP1-EG2-WB, DS-PS1-E-WB Technical Specifications Specification Details Model DS-PM1-RT-HWB Product Name Tri-X Wireless Receiver Compatible System Hikvision AX Hybrid PRO RF Frequency 433 MHz Wireless Technology Tri-X Transmission Distance Up to 1,300 m (open space) Wireless Security Frequency hopping, 128-bit AES encryption Wireless Detectors Up to 32 (portable emergency button not included) Wireless Sounders Up to 8 indoor and 4 outdoor Bus 1 × Speed-X LED Indicators Green: power/find me; orange: alarm/fault Power Supply 9–24 VDC (typical 12 VDC) Power Consumption Max. 100 mA @ 12 VDC; quiescent 40 mA @ 12 VDC Operating Temperature -10°C to 40°C Operating Humidity 10% to 90% Housing Material Plastic Dimensions (W × H × D) 110 × 155 × 32 mm Weight 233 g Why Choose the Hikvision DS-PM1-RT-HWB? Adds wireless detectors and sounders to a wired AX Hybrid PRO system without running new cables Long 1,300 m open-space range with encrypted, frequency-hopping links Up to 32 wireless detectors per receiver Simple Speed-X bus connection to the panel Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
40.000 JD
The Hikvision DS-PM1-O4H-H is a wired 4-way power relay expander for the Hikvision AX Hybrid PRO intrusion alarm system. It adds 4 on-board power relays, each handling up to 16 A, so the alarm panel can switch higher-power loads than a low-current relay expander. Powered by Speed-X technology, it has 1 uplink Speed-X port to the control panel and 1 downlink port for the next expander. It also has a TTL serial port and front and rear tamper protection, and runs on 9–24 VDC. Note: a Hikvision AX Hybrid PRO control panel is required (see "Works With" below). Key Features 4 on-board power relays, each handling up to 16 A Higher switching capacity than the low-current DS-PM1-O4L-H 2 × Speed-X bus: 1 uplink to the control panel, 1 downlink for the next expander Supports expander cascading 1 TTL serial port Front and rear tamper protection LED indicators for power and fault 9–24 VDC power input Works With Hikvision AX Hybrid PRO control panels: DS-PHA48-EP(B) (48 zones), DS-PHA64-LP(B) (64 zones) and the DS-PHA64-KIT-WB(B) kit, over the Speed-X bus Other AX Hybrid PRO expanders: cascade on the Speed-X bus, e.g. DS-PM1-I8O2-H 8-zone input expander Technical Specifications Specification Details Model DS-PM1-O4H-H Product Name Wired 4-Way Power Relay Expander Compatible System Hikvision AX Hybrid PRO Relay Outputs 4 power relays Relay Current Up to 16 A per relay Bus 2 × Speed-X (1 uplink to the control panel, 1 downlink for the next expander) Serial Port 1 × TTL Tamper Protection Front and rear LED Indicators 1 × power, 1 × fault Power Supply 9–24 VDC (typical 12 VDC) Power Consumption Max. 210 mA @ 12 VDC; quiescent 65 mA @ 12 VDC Operating Temperature -10°C to 40°C Operating Humidity 10% to 90% Housing Material Plastic Dimensions (W × H × D) 110 × 155 × 32.5 mm Weight 333.1 g Why Choose the Hikvision DS-PM1-O4H-H? Lets the AX Hybrid PRO panel switch higher-power loads through 4 independent relays Up to 16 A on every relay Speed-X cascading for larger installations Compact plastic module with tamper protection Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
39.000 JD
The Hikvision DS-PM1-O4L-H is a wired 4-way low-current relay expander for the Hikvision AX Hybrid PRO intrusion alarm system. It adds 4 on-board relays rated 6–30 V and up to 5 A, so the alarm panel can switch external low-voltage devices and circuits. Powered by Speed-X technology, it has 1 uplink Speed-X port to the control panel and 1 downlink port for the next expander. It also offers a power output of up to 500 mA, a TTL serial port, and front and rear tamper protection. Note: a Hikvision AX Hybrid PRO control panel is required (see "Works With" below). Key Features 4 on-board low-current relays, 6–30 V, up to 5 A each Lets the alarm panel switch external low-voltage devices and circuits 1 power output, 9–12 VDC, max. 500 mA 2 × Speed-X bus: 1 uplink to the control panel, 1 downlink for the next expander Supports expander cascading 1 TTL serial port Front and rear tamper protection LED indicators for power and fault 11–24 VDC power input Works With Hikvision AX Hybrid PRO control panels: DS-PHA48-EP(B) (48 zones), DS-PHA64-LP(B) (64 zones) and the DS-PHA64-KIT-WB(B) kit, over the Speed-X bus Other AX Hybrid PRO expanders: cascade on the Speed-X bus, e.g. DS-PM1-I8O2-H 8-zone input expander Technical Specifications Specification Details Model DS-PM1-O4L-H Product Name Wired 4-Way Low Current Relay Expander Compatible System Hikvision AX Hybrid PRO Relay Outputs 4 low-current relays Relay Rating 6–30 V, up to 5 A per relay Power Output 9–12 VDC, max. 500 mA Bus 2 × Speed-X (1 uplink to the control panel, 1 downlink for the next expander) Serial Port 1 × TTL Tamper Protection Front and rear LED Indicators 1 × power, 1 × fault Power Supply 11–24 VDC (typical 12 VDC) Power Consumption Max. 153 mA @ 12 VDC; quiescent 70 mA @ 12 VDC Operating Temperature -10°C to 40°C Operating Humidity 10% to 90% Housing Material Plastic Dimensions (W × H × D) 110 × 155 × 32.5 mm Weight 285 g Why Choose the Hikvision DS-PM1-O4L-H? Lets the AX Hybrid PRO panel control external low-voltage equipment through 4 independent relays 5 A rating on every relay output Speed-X cascading for larger installations Need higher loads? The DS-PM1-O4H-H offers relays rated up to 16 A Downloads ⬇ Download Datasheet (PDF) Warranty: 12-month warranty from the Official Distributor.
39.000 JD
The Hikvision DS-PM1-I8O2-H is a wired input expander (cascade type) for the Hikvision AX Hybrid PRO intrusion alarm system. It adds 8 wired alarm zones and 2 I/O outputs to the control panel, so you can connect more wired detectors and contacts without replacing the panel. The module connects to the control panel over the Speed-X bus and has a second Speed-X port for cascading the next expander. Every zone supports 3EOL wiring with alarm, tamper, masking, fault and short detection, and a dedicated power output feeds the connected wired detectors. Note: a Hikvision AX Hybrid PRO control panel is required (see "Works With" below). Key Features 8 on-board wired alarm zones 2 I/O outputs (for connection to a relay module) 3EOL zone wiring: Alarm 1 kΩ, Tamper 1 kΩ, Fault 2.2 kΩ Zone alarm, tamper, masking, fault and short detection 1 power output for wired detectors (9–12 VDC, max. 500 mA) 2 × Speed-X bus: 1 input to the control panel and 1 output for cascading the next expander Up to 900 m of bus cable to the control panel Front and rear tamper protection LED indicators for power and fault Wide 11–24 VDC power input Works With Hikvision AX Hybrid PRO control panels: DS-PHA48-EP(B) (48 zones), DS-PHA64-LP(B) (64 zones) and the DS-PHA64-KIT-WB(B) kit, over the Speed-X bus Wired detectors and contacts on its 8 zones, such as DS-PDC10DM-VG3, DS-PDC10AM-VG3, DS-PDC15-EG2(B) and DS-PDC5NC-EG2 Technical Specifications Specification Details Model DS-PM1-I8O2-H Product Name Wired Input Expander (Cascade) Compatible System Hikvision AX Hybrid PRO Alarm Inputs 8 wired zones Zone Wiring 3EOL (Alarm 1 kΩ / Tamper 1 kΩ / Fault 2.2 kΩ) I/O Outputs 2 (connect to relay module) Detector Power Output 1 × 9–12 VDC, max. 500 mA Bus 2 × Speed-X (1 input for the control panel, 1 output for expander cascading) Bus Distance Up to 900 m to the control panel Tamper Protection Front and rear LED Indicators 1 × power, 1 × fault Power Supply 11–24 VDC (typical 12 VDC) Power Consumption Max. 119 mA @ 12 VDC; quiescent 45 mA @ 12 VDC Operating Temperature -10°C to 40°C Operating Humidity 10% to 90% Housing Material Plastic Dimensions (W × H × D) 110 × 155 × 32 mm Weight 252.5 g Why Choose the Hikvision DS-PM1-I8O2-H? Adds 8 wired zones to an AX Hybrid PRO panel without replacing it 3EOL wiring reports alarm, tamper, masking, fault and short on every zone Long Speed-X bus runs and cascading for larger buildings Powers the connected wired detectors from its own output Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.
35.000 JD
The Hikvision DS-PM2-S(EU) 3G/4G Communication Module adds cellular communication to Hikvision AX Hybrid PRO control panels with 4G, 3G and 2G support: FDD-LTE B1/B3/B7/B8/B20, dual-band UMTS/HSDPA/HSPA+ B1/B8 and GSM/GPRS/EDGE 900/1800 MHz. With a SIM card in its slot, the panel can report alarm events over the mobile network on a main or backup path and send SMS notifications. Support for three network generations gives more coverage options at the installation site. Note: this is the EU-region version. Check that your mobile operator uses the listed bands; the DS-PM2-S(AU) version covers a different set of LTE bands. Key Features Adds 3G/4G cellular alarm communication to AX Hybrid PRO control panels FDD-LTE: B1/B3/B7/B8/B20 Dual-band UMTS/HSDPA/HSPA+: B1/B8 GSM/GPRS/EDGE: 900/1800 MHz 1 SIM card slot Enables SMS notifications from the panel Works as a main or backup path in the panel's dual-path communication Compact 62.03 × 88.28 mm board, 28 g Works With AX Hybrid PRO control panels: DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit Technical Specifications Specification Details Model DS-PM2-S(EU) Product Name 3G/4G Communication Module (EU) System Hikvision AX Hybrid PRO 4G (FDD-LTE) B1/B3/B7/B8/B20 3G (UMTS/HSDPA/HSPA+) B1/B8 (dual-band) 2G (GSM/GPRS/EDGE) 900/1800 MHz SIM Slot 1 SMS Notification Supported (through the control panel) Operating Temperature -10 °C to +40 °C Dimensions (W × H) 62.03 × 88.28 mm Weight 28 g Why Choose the Hikvision DS-PM2-S(EU)? One module covering 4G, 3G and 2G networks Reports alarms without depending on the site's wired network or phone line Adds SMS notifications to the panel Simple add-on for AX Hybrid PRO control panels Downloads ⬇ Download Datasheet (PDF) Warranty: 12-month warranty from the Official Distributor.
65.000 JD
The Hikvision DS-PM2-S(AU) 3G/4G Communication Module adds 4G LTE cellular communication to Hikvision AX Hybrid PRO control panels. Built on the SIM7600SA-H cellular module, it covers LTE-FDD bands B1/B2/B3/B4/B5/B7/B8/B28/B66 and LTE-TDD band B40. It has 2 SIM card slots, with one card used at a time. With the module fitted, the panel can report alarm events over the mobile network on a main or backup path and send SMS notifications. Note: this is the AU-region version. Check that your mobile operator uses one of the listed LTE bands; the DS-PM2-S(EU) version covers FDD-LTE B1/B3/B7/B8/B20 plus 3G and 2G networks. Key Features Adds 3G/4G cellular alarm communication to AX Hybrid PRO control panels SIM7600SA-H cellular module LTE-FDD bands: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD band: B40 2 SIM card slots (one card in use at a time) Enables SMS notifications from the panel Works as a main or backup path in the panel's dual-path communication Compact 62.03 × 88.28 mm board, 28 g Works With AX Hybrid PRO control panels: DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit Technical Specifications Specification Details Model DS-PM2-S(AU) Product Name 3G/4G Communication Module (AU) System Hikvision AX Hybrid PRO Cellular Module SIM7600SA-H LTE-FDD Bands B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD Band B40 SIM Slots 2 (only one card can be used at a time) SMS Notification Supported (through the control panel) Operating Temperature -10 °C to +40 °C Dimensions (W × H) 62.03 × 88.28 mm Weight 28 g Why Choose the Hikvision DS-PM2-S(AU)? A 4G LTE reporting path that does not depend on the site's wired network Two SIM card slots in one module Wide LTE band list for AU-region networks Simple add-on for AX Hybrid PRO control panels Downloads ⬇ Download Datasheet (PDF) Warranty: 12-month warranty from the Official Distributor.
65.000 JD
The Hikvision DS-PM2-G GPRS Communication Module adds GPRS cellular communication to Hikvision AX Hybrid PRO control panels. With a SIM card in its slot, the panel can report alarm events over the mobile network and send SMS notifications. AX Hybrid PRO panels report alarm events on a main and a backup path with configurable priority, so the cellular link can be the main path where there is no wired network, or the backup to LAN or PSTN. The module weighs just 17 g and measures 61.87 × 88.18 mm. Note: for AX Hybrid PRO control panels (see "Works With" below). A SIM card from your mobile operator is required. Key Features Adds GPRS cellular alarm communication to AX Hybrid PRO control panels 1 SIM card slot Enables SMS notifications from the panel Works as a main or backup path in the panel's dual-path communication An alarm path that does not depend on the site's wired network or phone line Compact 61.87 × 88.18 mm board, 17 g Operating temperature -10 °C to +40 °C Works With AX Hybrid PRO control panels: DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit Technical Specifications Specification Details Model DS-PM2-G Product Name GPRS Communication Module System Hikvision AX Hybrid PRO Cellular Network GPRS SIM Slot 1 SMS Notification Supported (through the control panel) Operating Temperature -10 °C to +40 °C Dimensions (W × H) 61.87 × 88.18 mm Weight 17 g Why Choose the Hikvision DS-PM2-G? Keeps alarms reporting without a wired internet connection or landline Adds SMS notifications to the panel Simple add-on for AX Hybrid PRO control panels Small, light module Downloads ⬇ Download Datasheet (PDF) Warranty: 12-month warranty from the Official Distributor.
35.000 JD
The Hikvision DS-PM2-P PSTN Communication Module adds a landline (PSTN) communication path to Hikvision AX Hybrid PRO control panels. The panel can then report alarm events over the telephone line to an alarm receiving centre using the Contact ID protocol (SIA DC-05-1999.09). AX Hybrid PRO panels report alarm events on a main and a backup path with configurable priority, so the PSTN line can serve as either path. The module draws only 0.36 W and measures 44.10 × 74.06 mm. Note: for AX Hybrid PRO control panels (see "Works With" below). A working PSTN telephone line is required. Key Features Adds PSTN (landline) alarm communication to AX Hybrid PRO control panels Contact ID (SIA DC-05-1999.09) reporting to alarm receiving centres Works as a main or backup path in the panel's dual-path communication Low power consumption: 0.36 W in total Compact 44.10 × 74.06 mm board, 43.5 g Operating range -10 °C to 40 °C, 10% to 90% humidity Works With AX Hybrid PRO control panels: DS-PHA48-EP(B), DS-PHA64-LP(B) and the DS-PHA64-KIT-WB(B) kit Technical Specifications Specification Details Model DS-PM2-P Product Name PSTN Communication Module System Hikvision AX Hybrid PRO Communication PSTN (landline) ARC Protocol Contact ID (SIA DC-05-1999.09) Power Consumption 5 V 0.21 W, 3.3 V 0.15 W (0.36 W total) Operating Temperature -10 °C to 40 °C Operating Humidity 10% to 90% Dimensions (W × H) 44.10 × 74.06 mm Weight 43.5 g Why Choose the Hikvision DS-PM2-P? A landline reporting path for sites that already have a telephone line Standard Contact ID reporting for alarm receiving centres Can act as the backup route when the main path fails Very low power draw Warranty: 12-month warranty from the Official Distributor.
30.000 JD
You have seen 72 out of 127 products
Discover HIKVISION products at Bestways in Jordan, including video intercom kits and indoor stations, AX PRO wireless and AX Hybrid PRO alarm systems, dash cameras, and professional PA audio equipment such as speakers, amplifiers and microphones.
All HIKVISION products are genuine and come with a 12-month warranty.
